Description

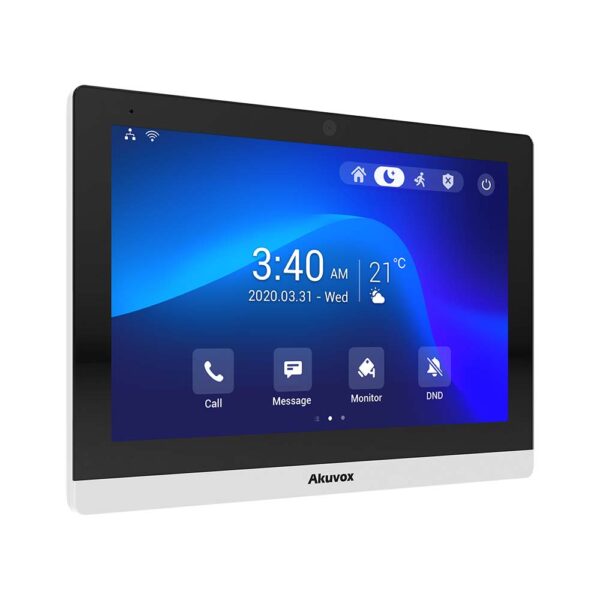

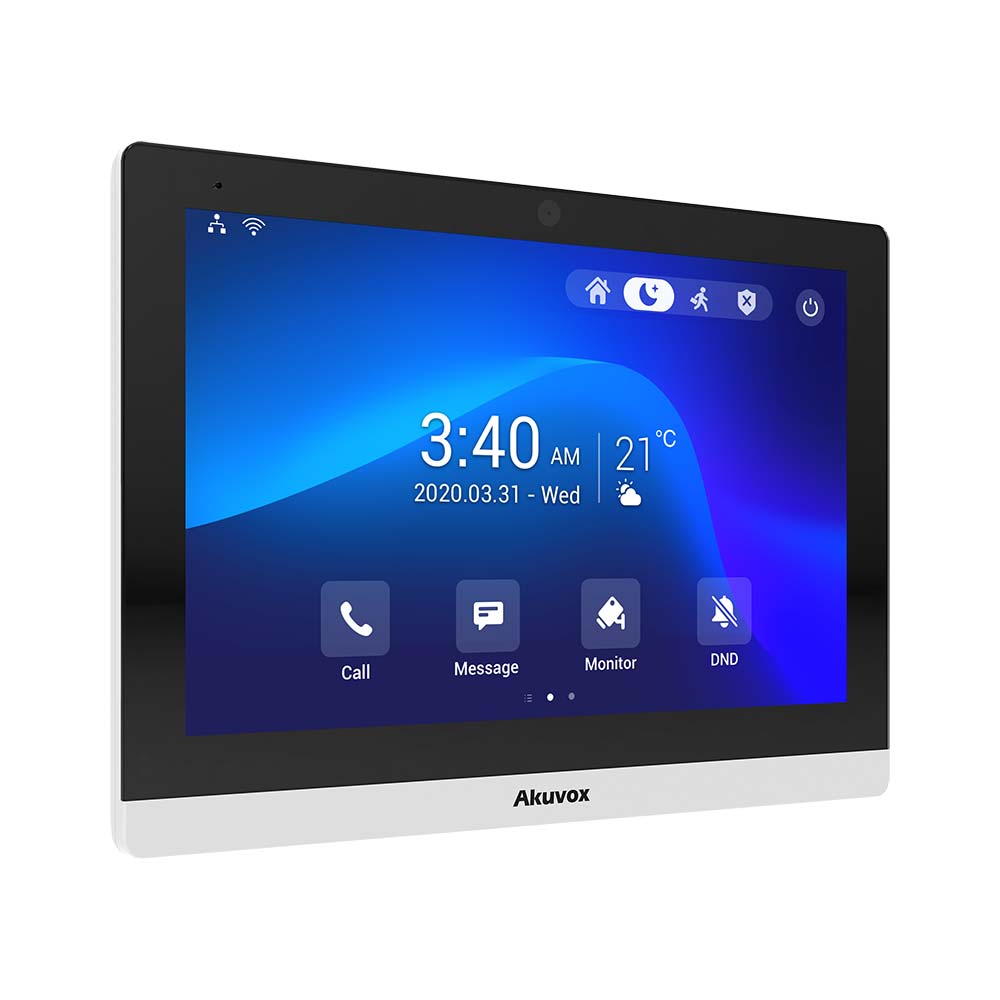

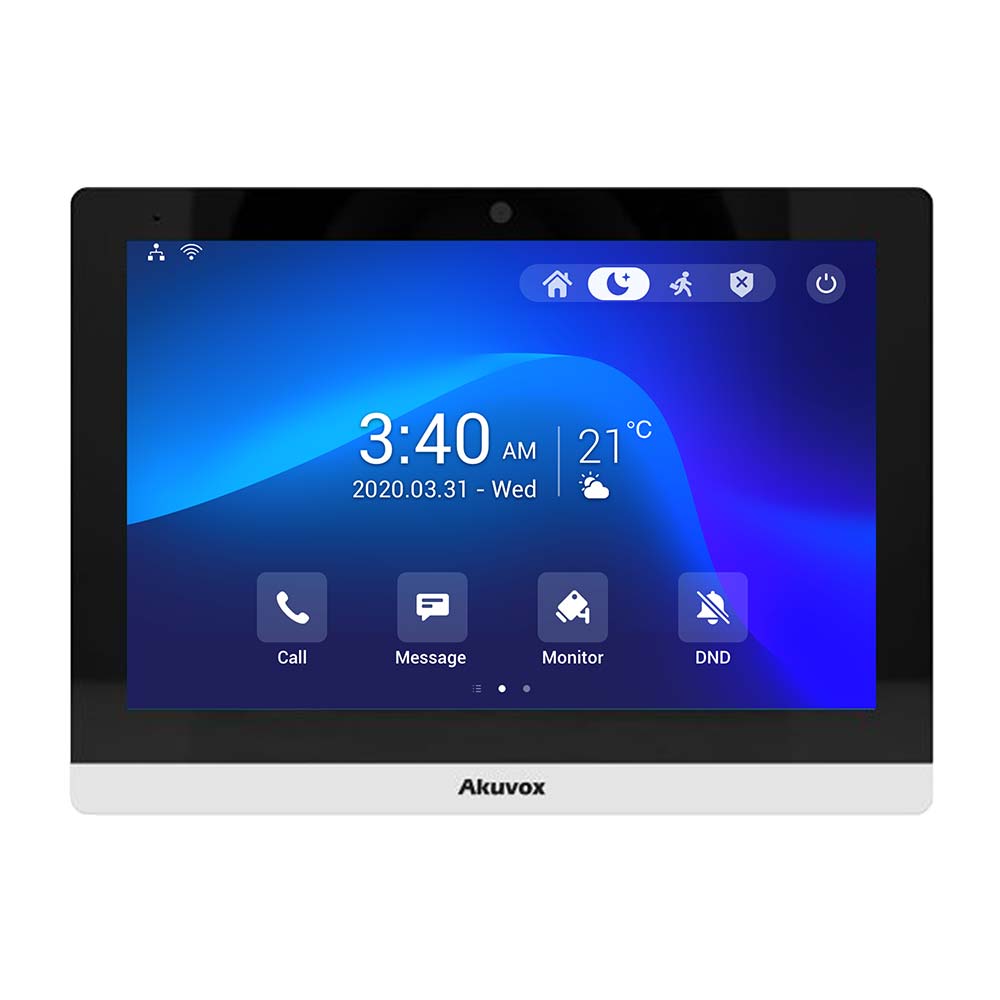

Akuvox C319 is a 10” Android indoor monitor with smart intercom features for people of all ages, an intuitive UI that even kids learn to use quickly, the capability of integrating telecare pendants for older individuals, and a built-in voice assistant for young people.
Specifications
| Physical & Power | |
| Front panel | Plastic |
| RAM / ROM | 2GB / 8GB |
| Display | 10 Inch IPS LCD |
| Screen | 10 Inch capacitive touch screen |
| Wi-Fi | IEEE802.11 b/g/n, @2.4GHz |
| BLE | Support BLE 4.2 |
| Camera | 1MP camera, CMOS |
| Memory slot | 1 Micro SD slot |
| RS485 port | Support |
| Relays out | 2 |
| Bell in | 1 |
| IO | 8 |
| Microphone | -26dB |
| Speaker | Dual speakers, 4Ω / 3W |
| Ethernet ports | 1xRJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12 VDC connector (if not using PoE) | |
| Tamper resistant | Support |
| Installation | Wall-mounted & Desktop |
| Dimension | 251 x 182.5 x 29.75 mm |
| Working Humidity | 10~90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen Display | |
| Display Mode | Normally black, Transmissive |
| LCD Size | 10inch (Diagonal) |
| Aspect Ratio | 16 |
| Resolution | 1280×800 |
| Contrast ratio | 900 |
| Luminance | 350 cd/m² |
| Viewing Angle | 80° Left, 80° Right, 80° Upper, 80° Lower |
| Touch Screen | Projected capacitive |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Automatic Gain Control | |
| Video | |
| Streaming formats | H.263 & H.264 |
| Networking | |
| Protocols support | IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Voice Assistant | |
| Voice pickup distance up to 5 meters | |
| Voice recognition accuracy up to 95% | |
| Privacy protection with native voice data | |
| Support English | |
| Application Scenario | |
| Villas | |
| Apartment complexes | |
| Home automation systems | |
| Modern interiors | |
